Flame Scanner Sensor YFD-7-2122H

Product Description

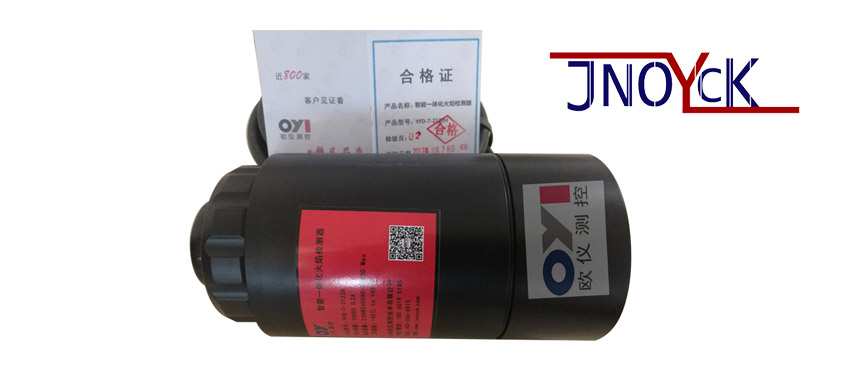

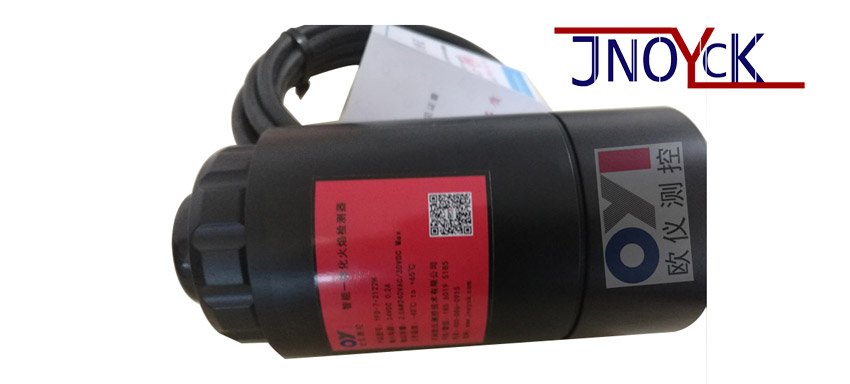

  YFD-7-2122H fire detection probe / flame detector [European measurement and control]

  The EI instrument measurement and control YFD-7-2122H fire detection probe / flame detector is a microprocessor device using a solid flame detection sensor. It has an internal relay that automatically sets the ON/OFF threshold, so the remote amplifier or flame switch can be eliminated.

  The YFD-7-2122H detects the modulation amplitude (ie, the flickering characteristic) produced by the target flame and detects a wide frequency. In the probe setup procedure, the amplitude of the target flame will be automatically stored along with the optimal ON/OFF value. The corresponding sensor gain will also be automatically selected. The probe combines all self-diagnosis and electronic self-test functions.

  The YFD-7-2122H fire detector/flame detector requires 24Vdc power supply, is connected to the cable through an 8-pin electrical quick connector, and has a standard 4-20mA flame intensity signal output.

  YFD-7-2122H fire detection probe / flame detector [European measurement and control]

  [European measurement and control YFD-7-2122H fire detection probe / flame detector mechanical parameters]:

  Mechanical parameters: YFD-7-2122H (fire detector / flame detector)

  Shell material: Engineering material – fiberglass filled with nylon resin

  Probe weight: 1.5 kg

  Mounting flange:

  Standard, non-metallic, 1" NPT female connector with 3/8" NPT internal thread cooling air connection.

  Optional, aluminum, 1" NPT kit accessory;

  [European measurement and control YFD-7-2122H intelligent integrated flame detector environmental parameters]:

  Temperature range: -40°C -- +65°C

  Humidity range: 0% -- 95% relative humidity, no condensation

  [European measurement and control YFD-7-2122H fire detection probe / flame detector cooling parameters]:

  Cooling / Purge requirements:

  Source: clean, dry, low temperature

  Air volume:

  113 l/min, accessed by a 3/8-inch threaded connection on the mounting flange or by a 1-inch connection on the “Y” tee attached to the front of the probe.

  When the ambient temperature is near the upper limit of the probe operating temperature or / while the fuel is not very clean, the air volume needs to be increased to 425 liters / minute.

  Pressure: Exceed the furnace or bellows pressure

  [European measurement and control YFD-7-2122H fire detection probe / flame detector electrical parameters]:

  Input power: 24 Vdc (+10%, -15%), supply current 200 mA

  Electrical connection: 8-pin quick connector

  Relay output: Flame relay, SPST (N.O.)

  Fault relay, SPST (N.C.)

  Contact capacity: Minimum: 10 mA @ 5 Vdc

  Maximum: 2 A @ 30 Vdc, 2 A @ 230 Vac (requires resistive load)

  Analog output: 4 -20mA DC output, connected to 24Vdc common terminal, maximum connection load: 750 ohms.

  Status display: Multi-digit LED displays flame signal strength, flame relay status, ready status, target flame status, backlight selection and fault code.
