Durag Fiber Optic Cable-II

Product Description

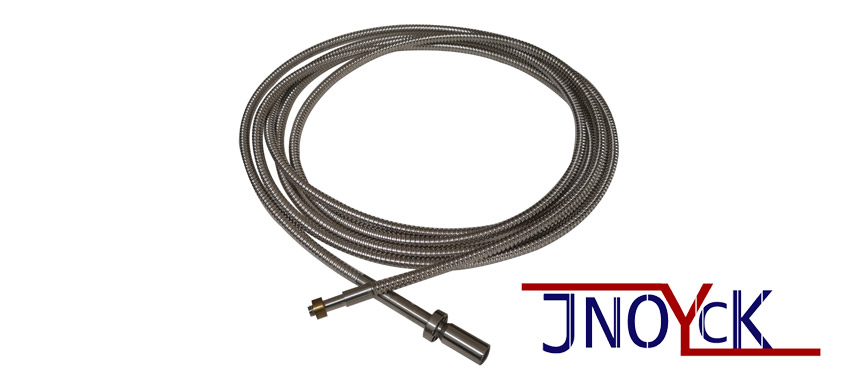

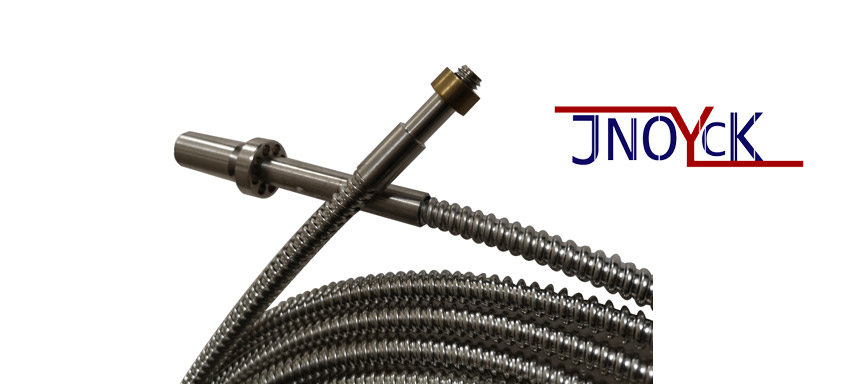

  Product Description: OYI instrument measurement and control YXD700 infrared flame detection fiber package for DURAG flame detection fiber
  Product details:
  For DURAG series flame inspection fiber, the OYI instrument measurement and control professional technical team with many years of research and development experience, combined with optoelectronic technology experts, through a large number of meticulous experimental research and analysis, developed and produced a fully applicable to DURAG flame detection fiber OYI instrument measurement and control flame detection fiber YXD700 series products.
  [OYI instrument measurement and control YXD700 infrared flame detection fiber principle]
  Principle of Infrared Flame Detector: There is a large amount of visible light in the flame and infrared rays above 0.9m. These wavelengths of light are not easily absorbed by coal dust, water vapor and other combustion products, so it is suitable for detecting pulverized coal flame, heavy oil flame and suitable The combustion of a fuel with a large inert gas content. Infrared flame detection determines the presence of flame by detecting the intensity of the infrared rays emitted by the combustion flame and the flame frequency. The probe uses a lead sulfide photocell or a silicon photodiode. Since the furnace flicker is completely burned in the flame zone, the flame flicker frequency usually does not exceed 2HZ. Therefore, the infrared flame detector can distinguish between the burner flame and the background flame through the filter circuit.
  [OYI instrument measurement and control YXD700 infrared flame detection fiber technology and technology]
  A unique process using proprietary technology from Euromonitor.
  [OYI instrument measurement and control YXD700 infrared flame detection fiber product features]
  High temperature resistance, light transmittance and stability, can completely replace imported products
  [OYI instrument measurement and control YXD700 infrared flame detection fiber product application]
  The application units are located in many power plants, and the quality is stable and reliable, which has won unanimous favorable comments from users.
  [OYI measurement and control YXD700 infrared flame detection fiber product parameters]
Description OYI Type Remarks
Infrared (Visible) Flame Detection Optical Fiber YXF700-IR-XXXX
IR&UV Flame Detection Optical Fiber YXF700-UV&IR-XXXX XXXX-length
Accessories of Flame Detection Optical Fiber Outer casing (flexible) YXF700-1 1-Flexible
Outer casing (rigid) YXF700-2 2-Rigid

  [OYI measurement and control YXD700 infrared flame inspection fiber ordering instructions]
  1. Product model or parameter
  2. Provide non-standard parameters for production
  3. Provide samples for reference production
