Flame Detector Oil-Gas Boiler

Product Description

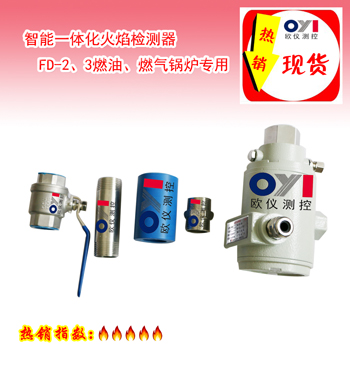

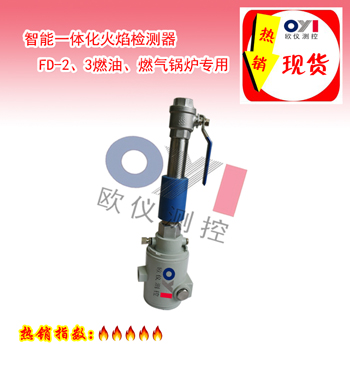

  Product Description: Boiler-specific intelligent integrated flame detector (installation diagram - YFD-2, YFD-3 fuel, gas boiler dedicated)

  Product details:

  YFD-2, YFD-3 fuel and gas boiler special intelligent integrated flame detector is imported sensor with stable quality and short response time. At the same time, the boiler intelligent integrated flame detector has small size and light weight. , easy to adjust and so on.

  YFD-2, YFD-3 fuel, gas boiler

  (Boiler-specific intelligent integrated flame detector)

  YFD-2, YFD-3 fuel, gas boiler special intelligent integrated flame detector, input, dual power supply available for 220VAC and 24VDC; output, flame and fault relays are provided as standard output, and also available Optional 4~20mA analog output. In this way, the YFD series boiler-specific intelligent integrated flame detector can be used as an independent device, directly alarming or driving the field instrument, or directly connected to the PLC controller, DCS and EDS system for remote control.

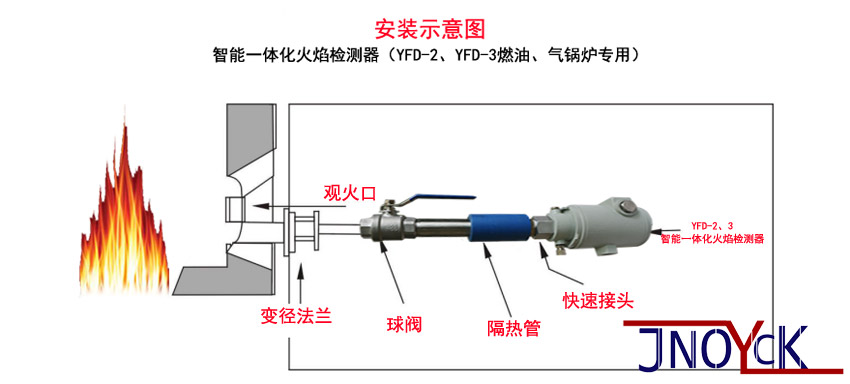

  YFD-2, YFD-3 fuel, gas boiler dedicated - installation diagram

  (Boiler-specific intelligent integrated flame detector)

  When used, the intelligent integrated flame detector of YFD series boiler must be aligned with the middle of the flame, equipped with purging air purging. The sensitivity, delay, zero point and background are set on the spot, and the operation is simple and convenient.

  The warranty period is 12 months. Due to the quality problem of the boiler-specific intelligent integrated flame detector, our company will return it, free maintenance outside the warranty period, only charge the cost of replacement parts, 24-hour service hotline 400-086-0915.

  YFD-2, YFD-3 fuel, gas boiler dedicated - exploded view

  (Boiler-specific intelligent integrated flame detector)

  YFD-2, YFD-3 fuel and gas boiler special intelligent integrated flame detector, suitable for gas, blast furnace gas, coke oven gas, natural gas, etc. in petroleum, chemical, metallurgy, military and offshore oil platforms, It effectively guarantees the production operation, personal safety and national property from damage, and is well received by nearly 380 users.

  [Installation and use]

  Classification: 1, common type and explosion-proof type

  2, aluminum alloy shell (conventional) and stainless steel shell (high rot and other harsh environments)

  (1) Appearance and structure


  YFD-2, YFD-3 fuel, gas boiler dedicated - structure diagram
