Product Name: OYI instrument measurement and control explosion-proof high-energy igniter / ignition device
　　Product details:
　　[OYI measurement and control explosion-proof high-energy igniter / ignition device product overview]
　　This OYI-style measuring and controlling explosion-proof high-energy igniter is an excellent low-voltage capacitor discharge ignition device. Together with the ignition cable and the ignition rod/ignition electrode, it constitutes the boiler ignition ignition device, which is mainly used for the ignition system of industrial burners. Explosion-proof high-energy igniter / ignition device shell is made by one-shot molding, which has better explosion-proof effect.
　　[OYI instrument measurement and control explosion-proof high-energy igniter / ignition device working principle]
　　When the igniter is working, the AC power frequency is 220V or 110V, which is converted into DC ripple current by boost rectification to charge the storage capacitor. When the capacitor is full, the discharge current is transmitted to the ignition rod/ignition electrode semiconductor nozzle through a discharge tube, a choke coil, a shielded cable, or the like to form a high-energy arc spark. When the ignition ignition is stopped, the remaining charge on the capacitor is discharged through the bleeder resistor.
　　[OYI instrument measurement and control explosion-proof high-energy igniter / ignition device internal circuit board display]
　　[OYI instrument measurement and control explosion-proof high-energy igniter / ignition device features]
　　Low discharge voltage, large spark energy, small size, easy operation, safe and reliable, corrosion resistance and long service life.
　　[OYI measurement and control explosion-proof high-energy igniter / ignition device product application]
　　It is suitable for ignition energy requirements of many different fuels (including light oil and heavy oil) and is widely used in ignition fields such as electric power, petrochemical, metallurgy, aviation and aerospace. At present, the high-energy igniter of Euro-Instrument has been used in many domestic power plants, and its performance is stable and reliable, which has been well received by users.

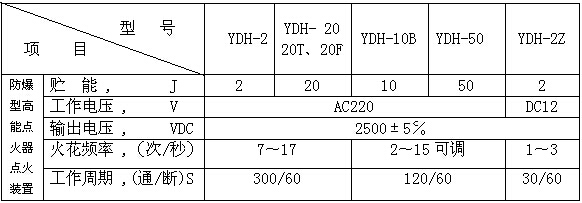

　　[OYI instrument measurement and control explosion-proof high-energy igniter / ignition device main technical parameters]



　　[OYI instrument measurement and control explosion-proof high-energy igniter / ignition device product precautions]
　　1. Do not energize the ignition device when there is no connection cable, ignition rod/ignition electrode;
　　2. Check the ignition device before use, the connection should be correct, the contact is reliable, and the ignition rod/ignition electrode end of the ignition electrode extends into the fuel zone 100~200mm;
　　3. The ignition device must cut off the system power during long-term shutdown;
　　4. The ignition device must be repaired after the power has been turned off for 5 minutes. (Ensure that the remaining charge of the capacitor is discharged through the bleeder resistor)
　　[OYI measurement and control explosion-proof high-energy igniter / ignition device spare parts]
　　1. High voltage ignition cable
　　2. High-energy ignition rod / ignition electrode
　　[OYI instrument measurement and control explosion-proof high-energy igniter / ignition device product ordering instructions]
　　1. Provide product model
　　2. Product reference samples are available
