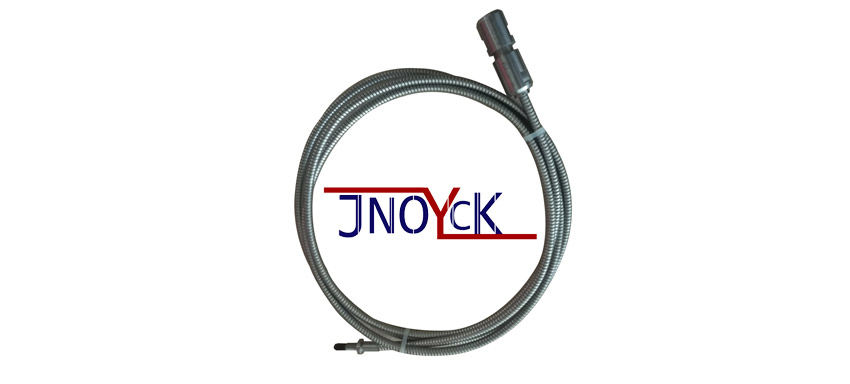

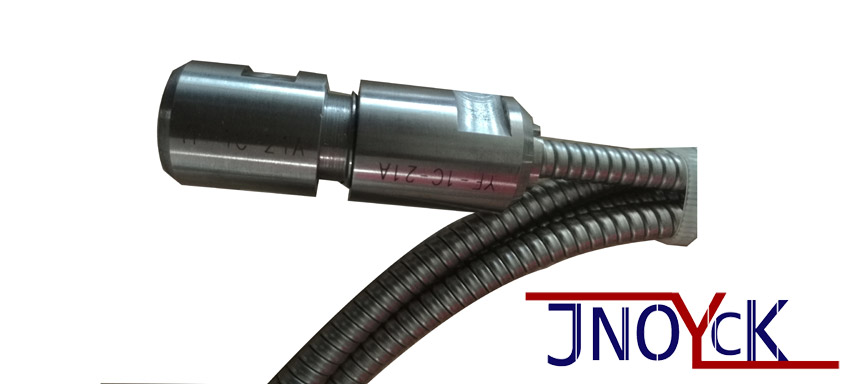

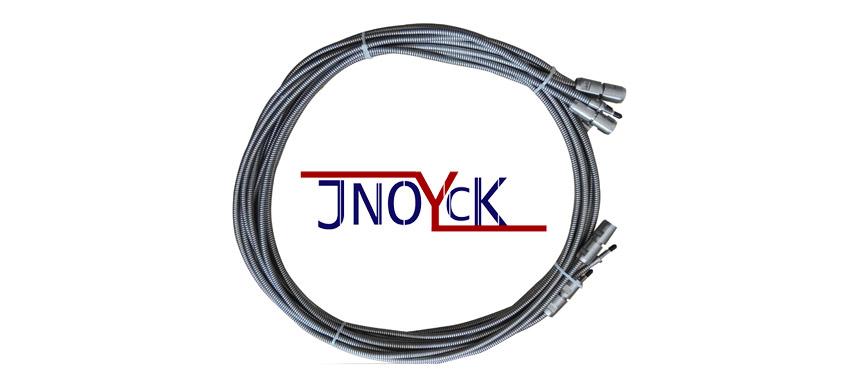

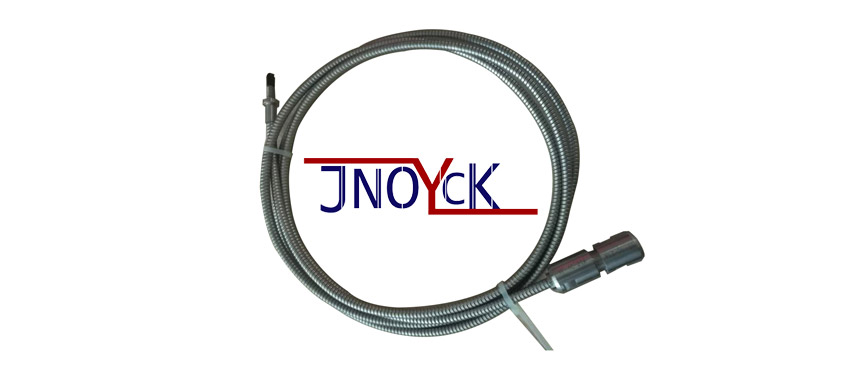

Forney Fiber Optic Cable-YF-1C-21A

Product Description

  Product Description: OYI instrument measurement and control YXF900 UV fire detection fiber supporting FORNEY fire detection
  Product details:
  For FORNEY fire detection fiber, the professional technical team of OYI meter with many years of research and development experience, combined with optoelectronic technology experts, through a large number of meticulous experimental research and analysis, developed and produced a suitable for the FORNEY fire detection fiber OYI instrument measurement and control fire inspection fiber YXF900 Series products.
  [OYI instrument measurement and control YXF900 ultraviolet fire detection fiber principle]
  The ultraviolet fire detection fiber uses the ultraviolet intensity unique to the flame to determine the presence or absence of the flame, and the photoelectric device is an ultraviolet photosensitive tube. It has a high discriminating power for adjacent burner flames and is commonly used as a flame detector for single burners. In the 1960s and 1970s, a large number of UV-type fire detectors and UV-fired inspection fibers were used in fuel and gas boilers, but they were not suitable for fuel combustion with a large inert gas content. This type of flame detector uses the ultraviolet intensity unique to the flame itself to determine the presence or absence of the flame. The ultraviolet wavelength range is narrow, between 0.2 and 0.3 m, and the probe uses ultraviolet photocells that are insensitive to visible light and infrared.
  [OYI technology measurement and control YXF900 UV fire detection fiber technology and technology]
  A unique process using proprietary technology from Euromonitor.
  [OYI Instrument Measurement and Control YXF900 UV Fire Inspection Fiber Product Features]
  High temperature resistance, light transmittance and stability, fully compatible with imported products
  [OYI instrument measurement and control YXF900 UV fire detection fiber product application]
  The application units are located in many power plants, and the quality is stable and reliable, which has won unanimous favorable comments from users.
  [OYI measurement and control YXF900 ultraviolet fire detection fiber product parameters]

Description OYI Type Remarks
IR&UV Flame Detection Optical Fiber YXF900-UV&IR-XXXX XXXX-length
Accessories of Flame Detection Optical Fiber Outer casing (flexible) YXF900-1 1-Flexible
Outer casing (rigid) YXF900-2 2-Rigid

  [OYI instrument measurement and control YXF900 UV fire inspection fiber ordering instructions]
  1. Product model or parameter
  2. Provide non-standard parameters for production
  3. Provide samples for reference production
